I. Function Introduction:1. Multi-platform control: Support PC, Android and IOS.
2. Fast transmission rate: Use HTTP protocol and data compression, data transmission is smaller and faster.
3. Background transmission efficient: Proprietary algorithm, small data size, higher efficiency.
4. Simple operation: Simple UI design, debugging and use do not affect each other, and zero learning cost.
5. Multilayer overlay processing: Background and foreground do not affect operational efficiency.
6. WiFi communication: Subtitle data can be transmitted through WiFi.
7. Support various indoor and outdoor unit board: HUB75E interface match with various kind of the unit board.
8. Support module manufacturers' line type loading: Support direct selection of module manufacturers' line type.
9. Support module line type automatic scanning: Line type automatic scanning.
10. Support program timing play, fixed time play, designated time play: The program can play at will.
11. Support rainbow word, background, pictures and other materials: Support all kinds of common materials.
12. Support user password function: In addition to WIFI password, the screen can be encrypted twice, which is more secure to use.
13. Support special chips: Such as ICN2038S.
Support external interface extension: Temperature.
II. Detail Parameters：
Operating system:
PC device support: XP, Win7, Win8 and Win10.
Mobile terminal support: Android(Android), IOS. |
| Display effect: support software dynamic background, magic run side overlay play. |
| Running type: phantom running, support the whole screen running/multi partition running/custom running. |
| Play type: support multi-program sequential play/timing play/fixed-length play/time-sharing play/lock single program play. |
| Adaptive range: support various 75E interface unit board. |
Supporting software
PC side : LED player V5
Mobile terminal: LED Mobile (color), support multi-program editing/multi-area display/multi-language version. |
| Area type: subtitle/time/analog dial/temperature. |
| Communication mode: WIFI, stable speed. |
| Sensor: Temperature |
| Clock: support multinational clock play, support jet lag settings. |
| Working voltage: + 4.5v ~6V |
| Maximum power consumption: <1W |
| Operating temperature: -30°C~70°C |
III. Loading Area：
| Model |
HUB Port |
Loading Area |
Storage |

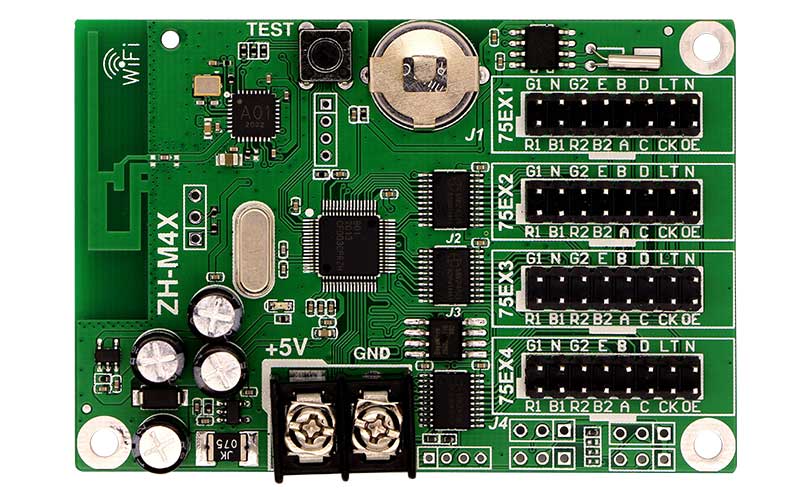

| ZH-M4X |
4*hub 75E |
384*64 192*128 96*256
max width：512； max height：256 |
4M |
