Input/Output Interface：
Input: HDMI 2.0*2、HDMI 1.4*1、DP1.2*1、TYPE-C*1、USB*1
Output: Network Port*6，Audio*1
Control Area：
Max Loading：3.9 million points，
Max Width: 16384; Max Height: 4320;
I. Product Introduction:

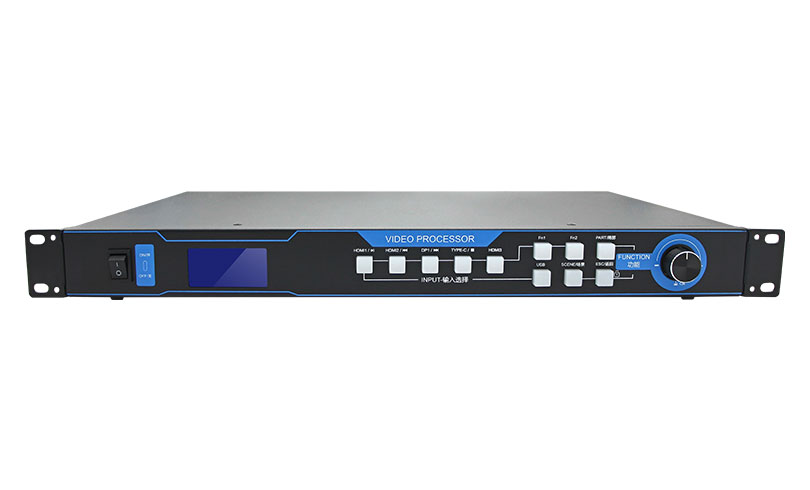

ZH-Z6S 4K two-in-one video processor is a product developed by ZH to meet the convenience of LED large screen installation. It supports high-definition signal input such as HDMI and DP; it supports max pixel 4096*2160@60Hz, 6pcs Gigabit network output port, and supports max width 16384 pixels or a max height 8192 pixels. It adopts a new communication architecture, high refresh, high brightness, new grayscale scanning engine, nanosecond synchronization, and can maintain smooth communication in poor communication conditions, allowing users to experience a more colorful and better LED world!
II. Functional Features：
1. Variety of input interfaces: including 2pcs HDMI 2.0, 1pcs HDMI 1.4, 1pcs DP1.2, 1pcs TYPE-C, and 1pcs USB flash drive;
2. Input resolution: max 4096*2160@60Hz pixels, supports any resolution setting;
3. The max load area: 3.9 million pixels, the max width 16384, and the max height 8192 pixels;
4. Arbitrary switching of video sources, and can scale the input image according to the display resolution;
5. Supports audio input and output;
6. Supports brightness and color temperature adjustment;
7. Low brightness and high gray;
8. Standard network port central control docking;
9. 6pcs Gigabit network output ports, arbitrary splicing up and down, left and right;
10. Hot backup: hot backup of two network ports in the same group and hot backup of multiple cards;
11. Supports ZH all series receiving cards, multi-function cards, and fiber optic transceivers;
| Type |
Name |
Download |
| Product Specification |
ZH-Z6S Product Specification |
Download |
| Manual |
ZH-Z6S Processor Manual |
Download |
