I. Product Introduction:

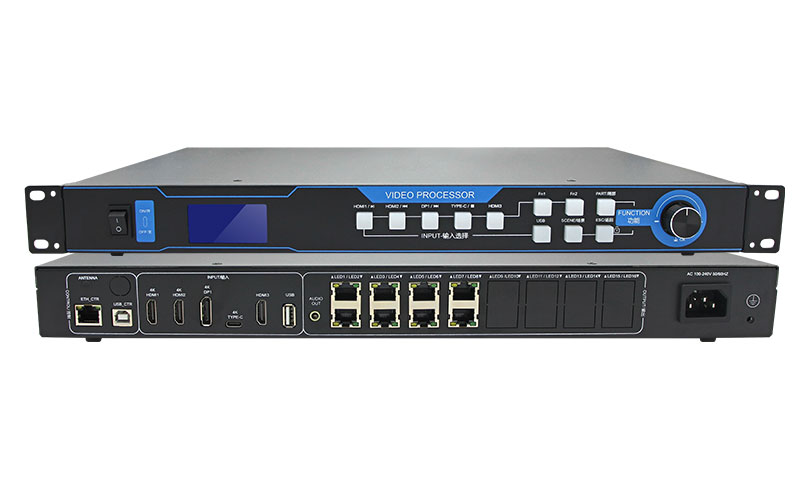

ZH-Z8S 4K two-in-one video processor is a product developed by ZH to meet the convenience of LED large screen installation. It supports high-definition signal input such as HDMI and DP; it supports max pixel 4096*2160@60Hz, 8pcs Gigabit network output port, and supports max width 16384 pixels or a max height 8192 pixels. It adopts a new communication architecture, high refresh, high brightness, new grayscale scanning engine, nanosecond synchronization, and can maintain smooth communication in poor communication conditions, allowing users to experience a more colorful and better LED world!

II. Functional Features：

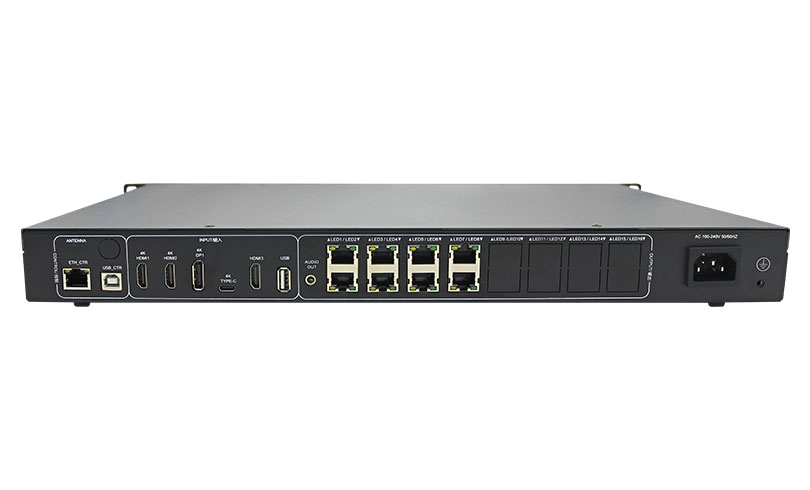

1. Variety of input interfaces: including 2pcs HDMI 2.0, 1pcs HDMI 1.4, 1pcs DP1.2, 1pcs TYPE-C, and 1pcs USB flash drive;
2. Input resolution: max 4096*2160@60Hz pixels, supports any resolution setting;
3. The max load area: 5.2 million pixels, the max width 16384, and the max height 8192 pixels;
4. Arbitrary switching of video sources, and can scale the input image according to the display resolution;
5. Supports audio input and output;
6. Supports brightness and color temperature adjustment;
7. Low brightness and high gray;
8. Standard network port central control docking;
9. 8pcs Gigabit network output ports, arbitrary splicing up and down, left and right;
10. Hot backup: hot backup of two network ports in the same group and hot backup of multiple cards;
11. Supports ZH all series receiving cards, multi-function cards, and fiber optic transceivers;

Type	Name	Download
Product Specification	ZH-Z8S Product Specification	Download
Manual	ZH-Z8S Processor Manual	Download
